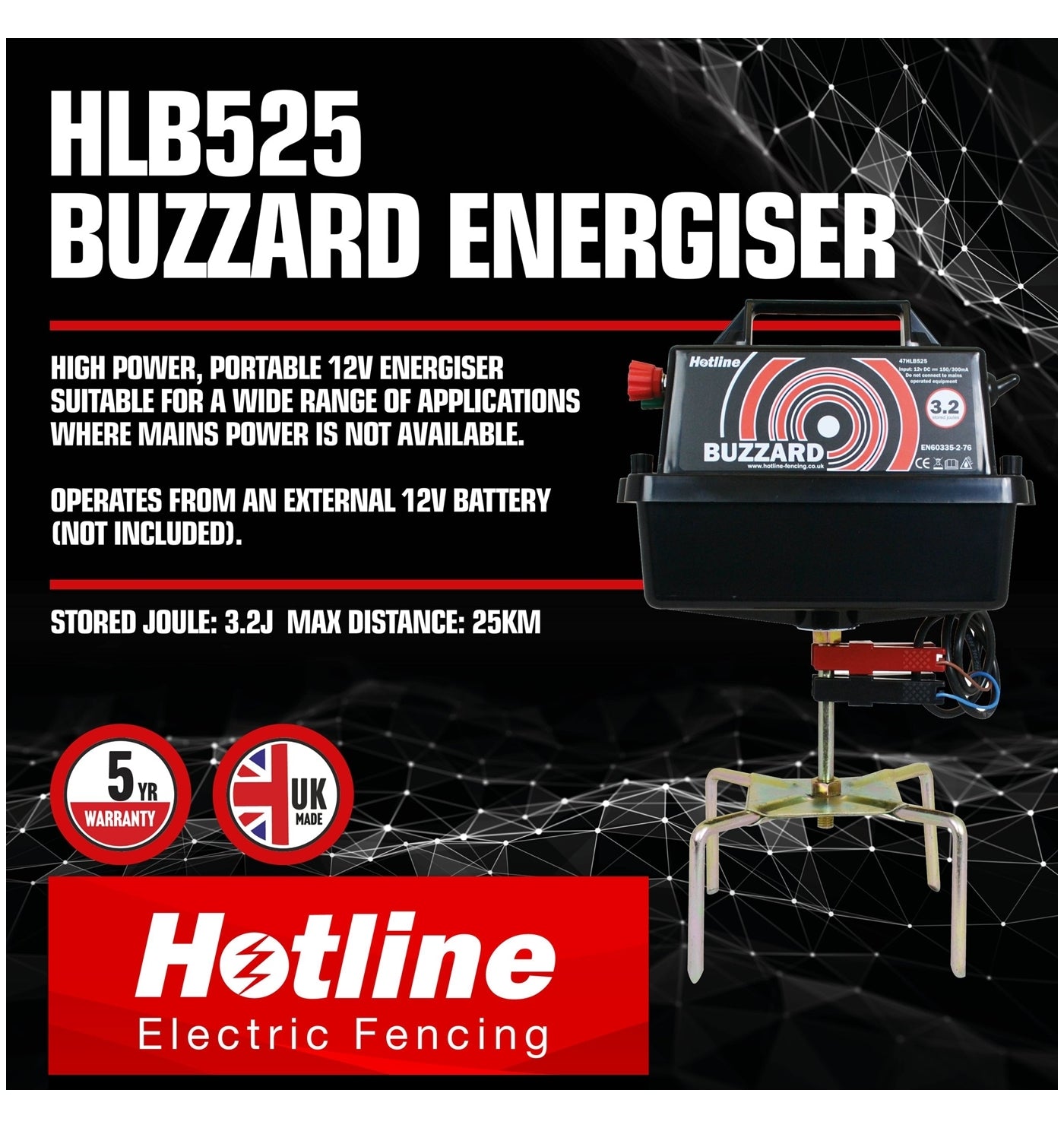

Hotline - Buzzard Energiser - 12 Volts | 3.2 Joules

Name: Hotline - Buzzard Energiser - 12 Volts | 3.2 Joules
Brand: Hotline
SKU: HL6635
Price: 225.00 GBP
Availability: InStock

£225.00

*SPECIAL OFFER!* Sold out

Tax included. Shipping calculated at checkout.

Product Code: HL6635

Product variants

Quantity

The 12 Volt, 3.2 Joules* Hotline Buzzard Energiser is a high power electric fencer suitable for all uses including 3 reel systems, electric fence netting, and long distance electric fencing. The Buzzard electric fence energiser has a rigid 4 prong stand and can power up to 25 km of fencing. It is particularly recommended for use on long boundary fencing applications where where mains power is not available. This powerful fencer has two output levels (high and low). If animals are being fenced for the first time, the energiser should be set to 'high' for the first week to teach the animals to avoid the fence. The energiser can then be switched to 'low' after this initial period in order to conserve the battery life. If, however, the electric fence is being used to keep animals out, the energiser should always be switched to the 'high' output position. As the Hotline Buzzard energiser is designed to be used on long lengths of electric fencing, a powerful 12v external battery will be required. Leisure or marine batteries are recommended for use with this energiser because they are designed to be discharged and recharged (unlike car batteries which are designed to be constantly trickle charged). The LED will flash GREEN when the unit is working correctly, but will change to RED when the battery requires re-charging. A buzzer will also sound if the battery terminals are connected incorrectly. The Hotline Buzzard Energiser is made in the UK, and comes with a 5 year warranty. All the leads required to connect this energiser to your electric fence are included in the box.

• Requires an external 12v leisure or marine battery (not included).

• It is recommended that a separate ground (earthing) stake of 1 metre is used for an efficient system. For longer fences or poor soil conditions, add more stakes, spaced 2 metres apart and linked with wire.

*Joules
This is the level of energy the energiser produced (stored joules) and releases (output joules) onto te fence line. Most energisers have similar voltage levels but the higher the joule the further the voltage can be pushed along the fence. In addition to powering longer lengths of fence, higher joules also cope with more inefficiencies, such as vegetation on the line, without adversely affecting working voltage.

View full details

Features

Key Features:

✔ 12v external battery input.

✔ 3.20 Stored joule | 2.24 Joule output.

✔ 25 km max distance.

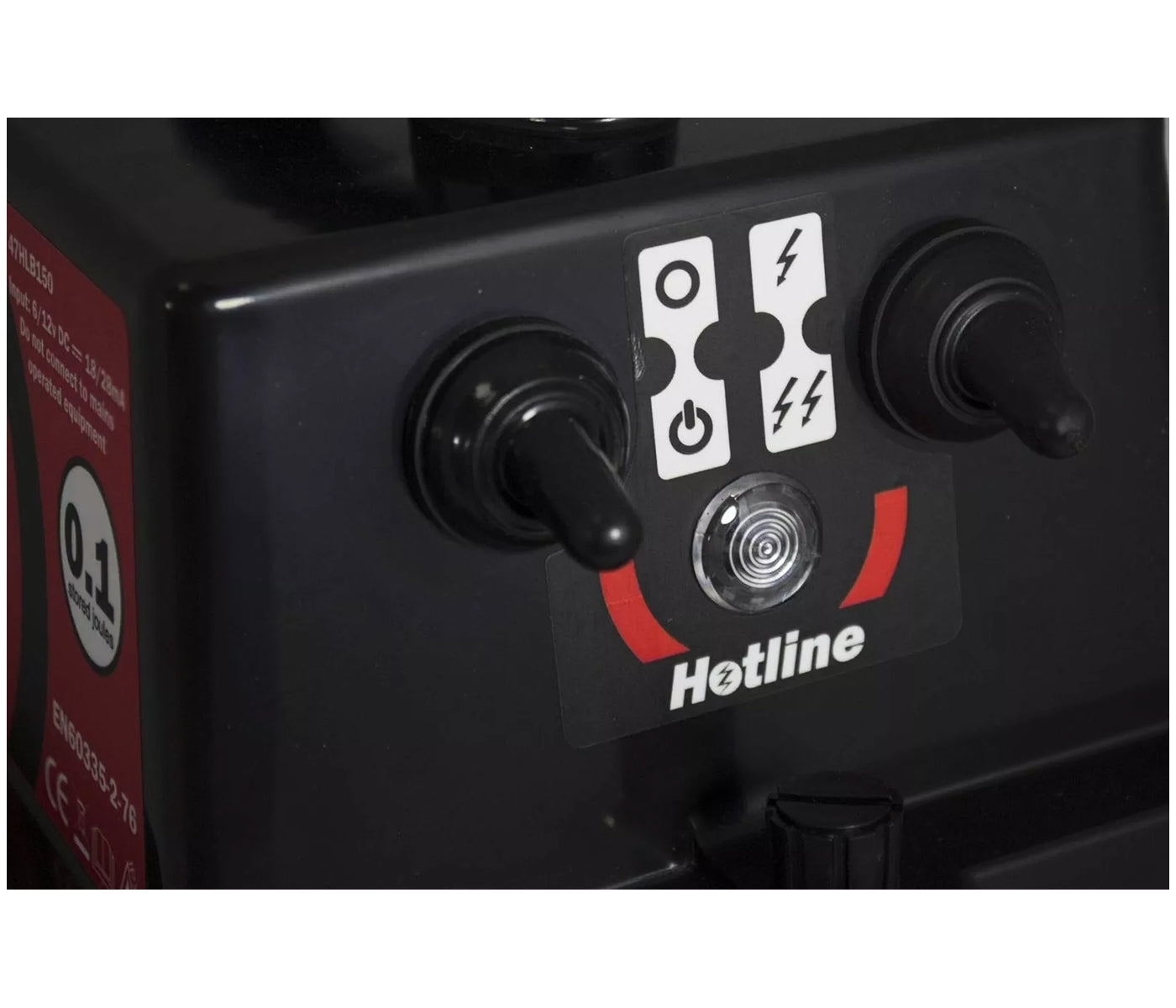

✔ High & low power settings.

✔ Rigid 4 prong stand.

✔ Low battery indicator.

✔ Pulse indicator.

✔ Solar assist.

Instructions / Feeding Guide

Directions for Use:

To view the instruction manual please CLICK HERE.

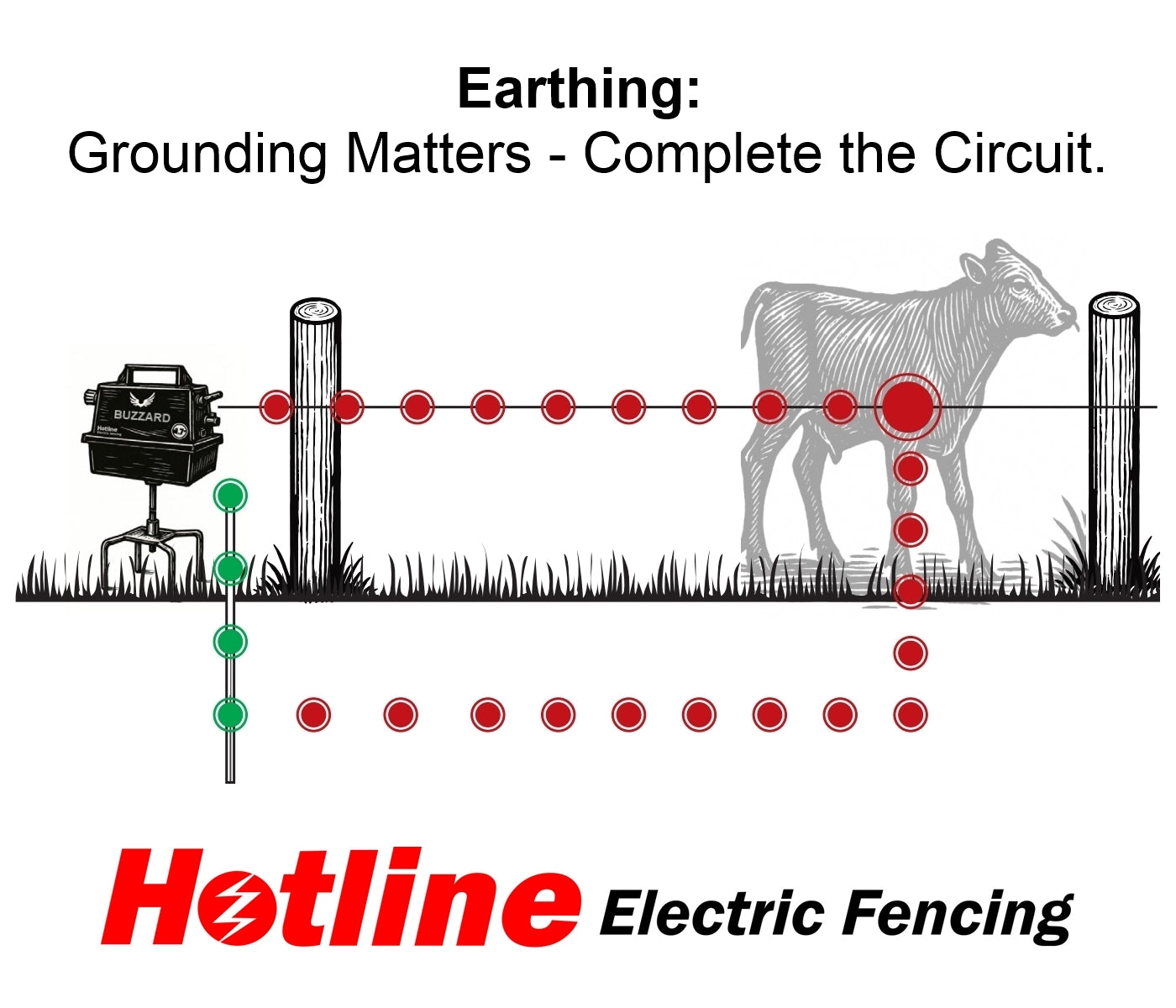

Earthing: Grounding Matters - Completing the Circuit.

Earthing is one of the most critical and often most overlooked parts of an electric fence system. Many people associate 'grounding' with household electrics and see it purely as a safety measure. In electric fencing, however, it’s half the circuit. The fence line delivers the electrical pulse. The ground system completes the loop. When an animal touches the live wire, electricity travels through its body into the earth then back through the grounding system to the energiser, triggering the 'shock.' While the fence line uses highly conductive filaments, the return path the soil itself is much less predictable. Ground conductivity varies based on moisture, soil type, and geological conditions. In dry weather, the earth may conduct poorly, reducing fence performance.

Best Practices for Grounding:

• Try to install earth stakes in damp soil where possible. Use at least one 1-metre stake, driven at least 1m deep to reach below the dry topsoil.

• For longer fences or poor soil conditions, add more stakes, spaced 2 metres apart and linked with wire.

• The better your grounding, the more effective your fence.

Ingredients / Materials

Materials: The Hotline Buzzard Energiser is housed in a tough, weather-resistant plastic casing.

Product Specifications

Specifications:

• SPR Product Code: HL6635

• Barcode: 5021385006635

Technical Specifications:

• Power Supply: 12 V

• Operating Mode: battery

• Voltage DC: 12 V

• Stored Energy: 3.2 J

• Stored Joules (low power setting): 1.6 J

• Pulse Energy: 2.24 J

• Output Joules (low power setting): 1.25 J

• Max. Voltage: 11500 V

• Output Volts ('Low' Power Setting): 8400 V

• Max. Voltage 500 Ohm: 4900 V

• Max. Voltage 500 Ohm (Low Power Setting): 3500 V

• Max. Fence Length: 25 km

• Distance (Low Power Setting): 20 km

• Power Consumption 12 V min.: 160 mA

• Power Consumption 12 V max.: 320 mA

About the Manufacturer / Vendor

Hotline
Hotline Electric Fencing, or AEC Electric Fencing as it was originally named, have been a trusted name in the industry since their establishment in Newton Abbot, Devon in 1968. Hotline were delighted to have recently celebrated their 50th anniversary of manufacturing experience. Throughout the years, their product range has grown significantly to encompass a wide range of high quality, British-made products. In 2007 Hotline proudly became part of the horizont group - this partnership has allowed them to expand their product range as well as allowing them to share and combine their knowledge and expertise in order to provide the highest level of quality, innovation and service to their valued customers.
