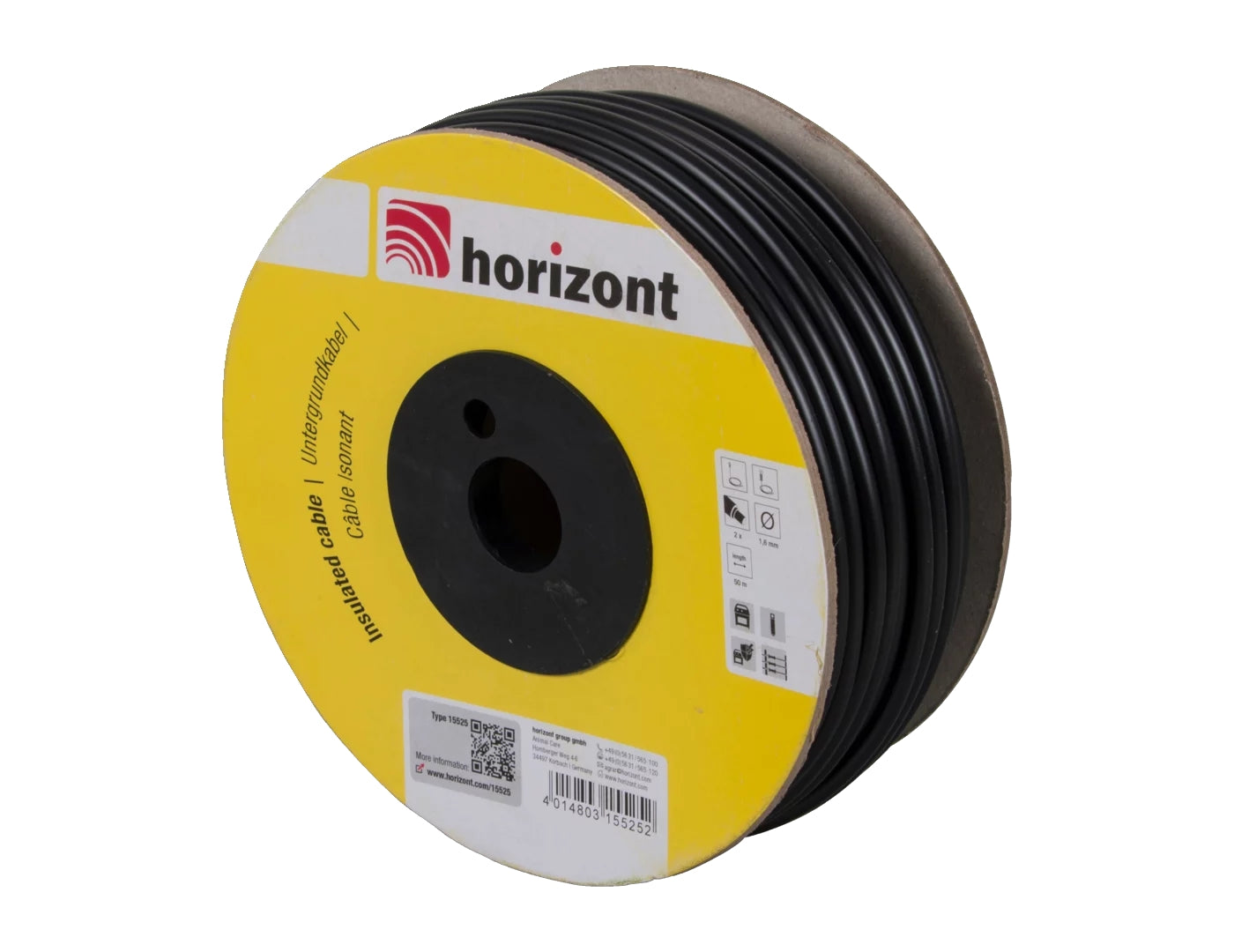

Electric Fence Underground Connecting Feeder Cable - 50m Roll
Electric Fence Underground Connecting Feeder Cable - 50m Roll
Regular price
£48.50 GBP
Regular price
Sale price
£48.50 GBP
Unit price
per
The gate in the electric fence should always be constructed from gate sets with an underground cable running parallel to it. Thus, even when the gate is open, the fence is electrified through the cable. When the gate is closed, the gate handle sets are electrified via the gate handle suspended in the gate handle insulator. The conductor material is hooked into an insulator that is not connected to the fence. This energizes the gate when it is closed. A gate handle lying on the ground can then no longer generate any discharges or interference. These cables are used for above-ground and underground fence feeders, for connecting ground rods, and for power routing at gates. To protect the underground cable, it is useful to lay them in a protective tube or pipe. The cable is double insulated and has a conductor made of galvanized iron wire. The dielectric strength is about 20,000 volts.
Key Features:
• The dielectric strength is approx. 20,000V.
• Double insulated with a galvanized iron wire conductor.
Specifications:
• Reel length: 50m.
• Max. supply cable length: 500m.
• Diameter: 1.6mm
• Resistance: 0.07 Ohm/m.
Key Features:
• The dielectric strength is approx. 20,000V.
• Double insulated with a galvanized iron wire conductor.
Specifications:
• Reel length: 50m.
• Max. supply cable length: 500m.
• Diameter: 1.6mm
• Resistance: 0.07 Ohm/m.
